Sleek, slim, secure aluminium inline patio door
Perfect for small or wide-span openings
Offering it all
With the perfect combination of security, thermal performance, and style, SheerGlide® instantly transforms any home, flooding it with natural light while framing the surrounding landscape.
Proudly Made in Britain, these high-quality aluminium inline patio doors don’t just look the part, they also benefit from our unique patented thermal and security technology
Unique Single Component Interlock
Our patent pending Sheerline TwinLock interlock is strong, slim, and fully thermally broken. It’s the first of its kind and as it’s integrated into the doors, it allows them to pass both thermal and security testing without compromise.
Exceptional Security Built-in
Designed by hardware specialists, Ingenious Locks & Hardware, this modular ‘quad’ hooklock provides built-in security. A true PAS 24 lock, it is manufactured to exacting standards, delivering exceptional levels of reliable security and operation.
Featuring Thermlock Technology
Designed and manufactured by us, our award-winning Thermlock® technology offers almost double the insulation when compared to polyamide. This makes SheerGlide® inherently more efficient than systems with polyamide thermal breaks.
With refined Aesthetics
With slim sightlines and a 38mm interlock, an architecturally refined style, modern thermal performance and security excellence SheerGlide® proves that it is possible to offer style without compromising on performance
Slim Sightline
Just 38mm slim, the interlock gives structural stability and insulation whilst maximising the light and view
As low as 1.0u
Triple Glazed and 1.4u Double Glazed options
Impressively low u-Values
These U-values are easy to remember as they are the same for every product within the SheerGlide range and have been achieved thanks to Sheerline’s proprietary Thermlock® technology. It’s a huge achievement for the team and further highlights Sheerline’s commitment to innovative, energy efficient products that don’t compromise on sustainability, security, or style
Colour options
SheerGlide Inline Sliding PatiDoors in eight powder coated matt colours, as well as a high gloss white plus new Premium Foil Laminated Grain options with the option of choosing a different colour for the interior to help you find the look that is perfect for your property.
SheerGlide Hardware

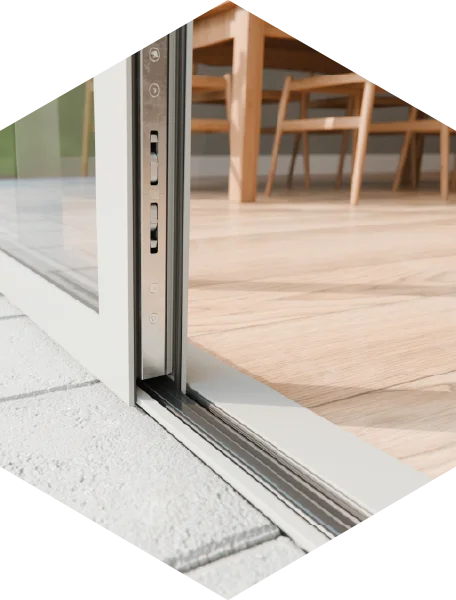

Threshold
Make the most of the 80mm continuous frame threshold or sink it to match the internal floor height

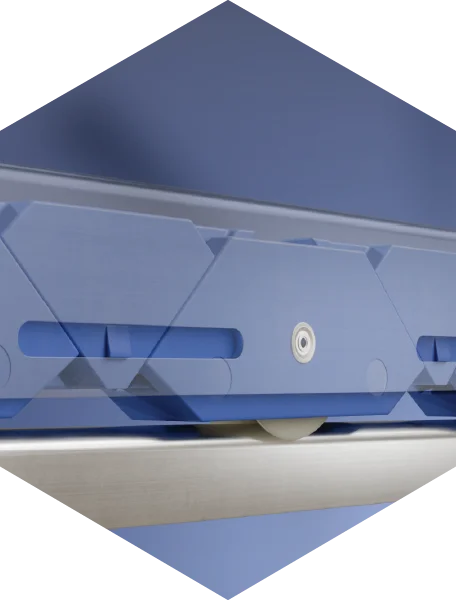

Smooth Operation
Self-levelling rolling gear with an independent bogie design ensures an ultra-smooth operation

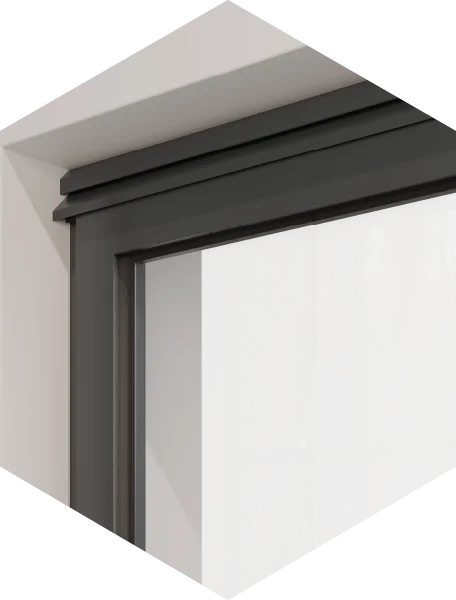

Grille Shroud Option
Offered as a discreet, perfectly colour matched alternative to external trickle vent goods.

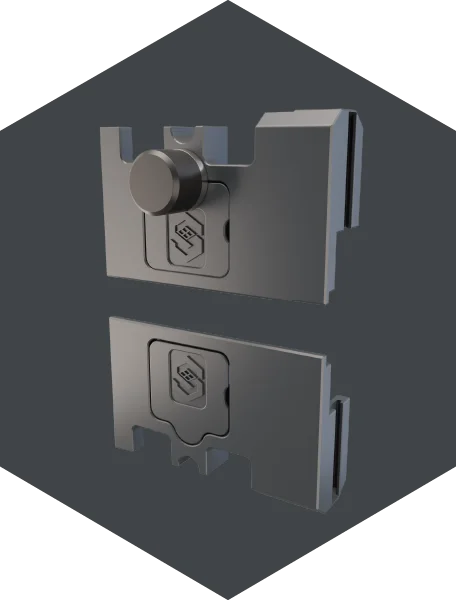

100% Metal Castings
Visible castings are metal for a premium finish and powder coated at the Qualicoat-approved facility

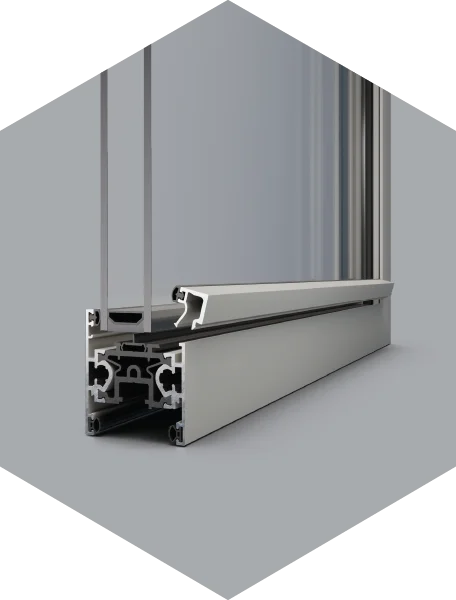

Clip-in Glazing Bead
For fast installation and makes it easier to transport large panes of glass to your home

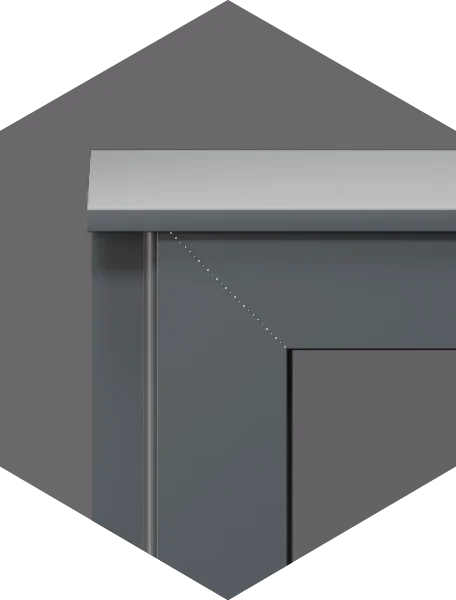

Unique 45* Angle Mitre Cuts
Eliminate unsightly square cut joints, no exposed open ends, no tooling required only drill jigs
Download the Sheerline Aluminium Brochures
Technical Data
Minimum and Maximum Dimensions
| Sash Size | Minimum | Maximum |
| Width | 1200mm | 4000mm |
| Height | 1850mm | 2300mm |
| Part L | Compliant with Thermlock Technology |
| Part F | Compliant via 25mm Head Vent Frame Extender Combi |
| Part M | Compliant |
| U-Value | 1.4 Double Glazed |
| 1.0 Triple Glazed | |
| Sightlines | Slim 92mm Frame with Sash Sightlines |
| Interlock | 38mm Slim Interlock |
| Configuration | 2 Pane |
As Approved Installers for Sheerline SheerGlide Aluminium Premium Patio Doors, we offer our dedicated survey and install service throughout South Wales including Abergavenny, Crickhowell, Usk, Monmouth, Brecon, Chepstow, Cwmbran, Newport, Cardiff and Merthyr areas and beyond
